175A Battery Plug 25mm² Terminals Handle Compatible with Anderson BLUE 175A

SKU: EB000228 Categories: ,

£11.95

52 in stock

Loading...

Description

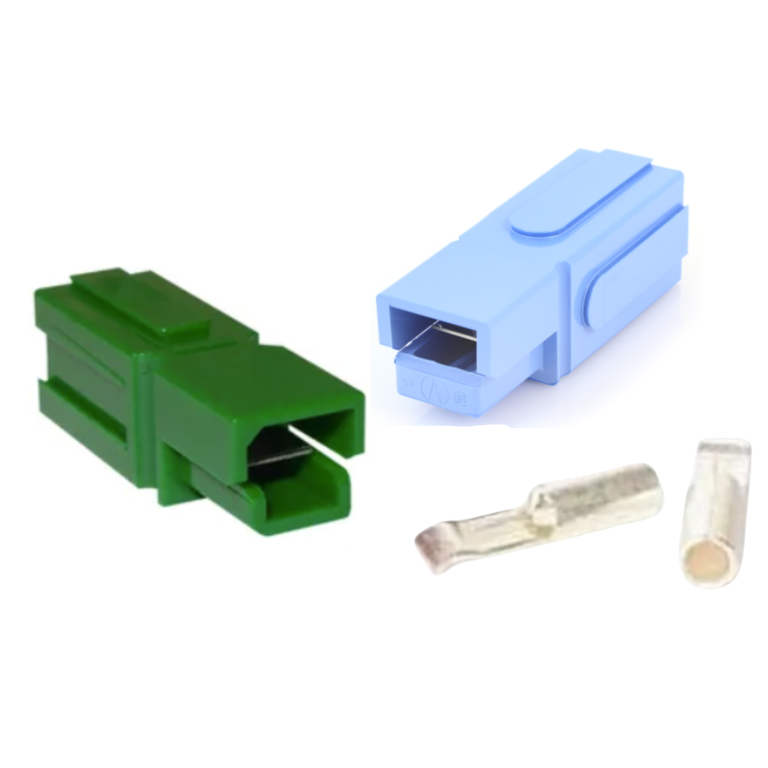

175A Battery Plug 25mm² Terminals Handle Compatible with Anderson Connector BLUE 175A

1 X 175 AMP BLUE HIGH CURRENT CONNECTOR

WITH GENDERLESS DESIGN. SUPPLIED WITH PLASTIC HANDLE
Complete with terminals suitable for cables up to 25mm² (4 AWG)

Product Specifications:
  • Ratings: 175 amps. 600 Volts Maximum
  • Housing dimensions: 79 x 55 mm. light and durable polycarbonate housing
Contacts:
  • Silver plated contacts – offers greater longevity when using high power. elevated temperature applications
  • Terminals can either be crimped or soldered to the cables

Unique features:

  • Mechanically keyed housings – prevents accidental component mating (each connector slots into the other – there is no male and female version)
  • Single-piece housing – provides industrial strength quality and durability
  • Genderless design – makes assembly quick and easy and reduces the need for high stock holding (only need to stock one part!)
  • Flat wiping contact system – wiping action cleans the contact surface during disconnection.
Listing Includes:

1 x 175 Amp Blue. Battery Connector plugs
2 x Copper terminals Silver plated – 25mm² (4AWG). (number of terminals supplied. will always be double the number of housings as there are two terminals required per housing).
1 X Red Handle with 2 x nuts and 2 x bolts
