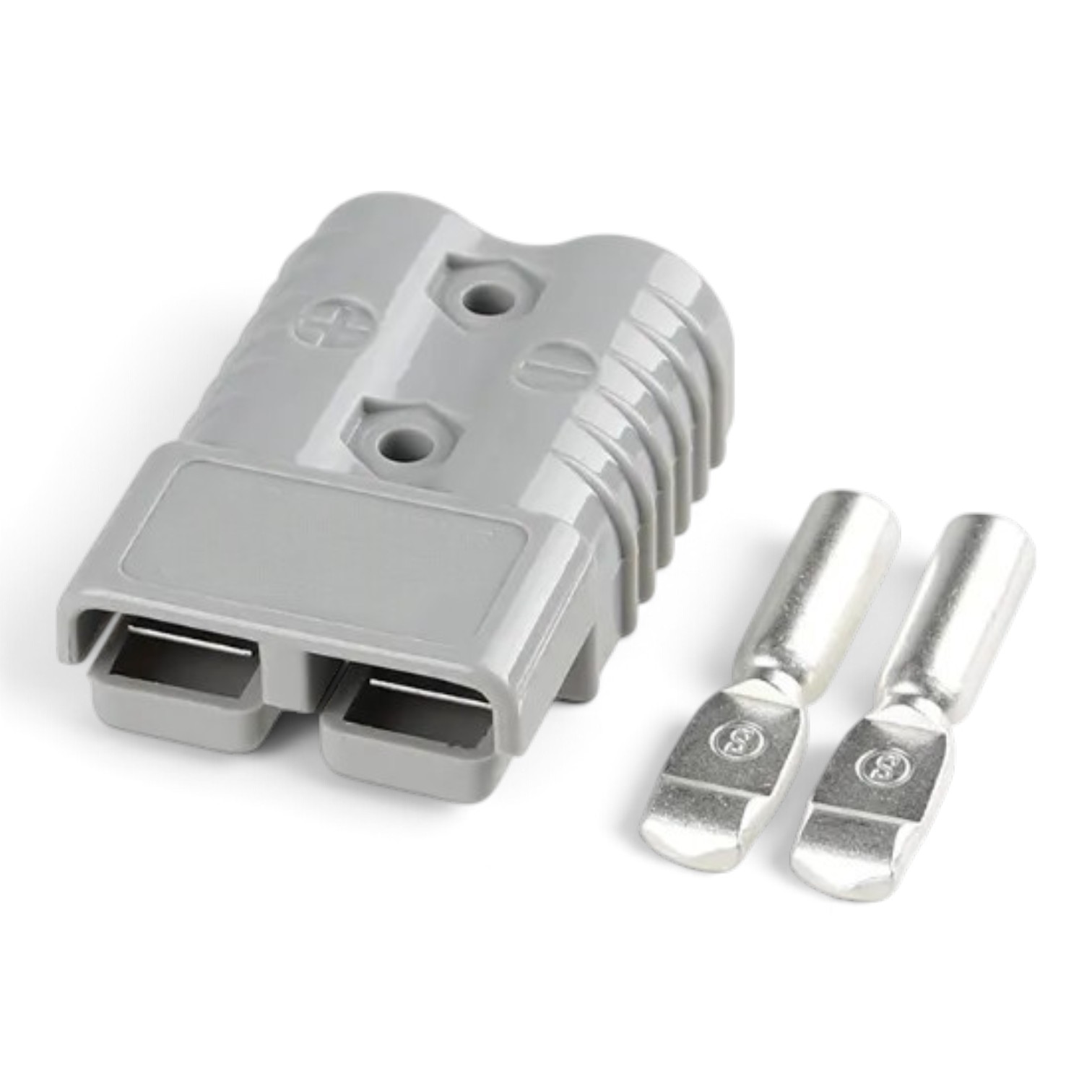

175A Grey Heavy Duty Battery Connector Terminal 6 AWG

175A Grey Heavy Duty Battery Connector Terminal (6 AWG)

Designed for high-current power transfer in automotive, marine, commercial, and off-grid solar systems, the 175A Grey Heavy Duty Battery Connector Terminal (6 AWG)  provides a reliable, low-resistance connection compatible with standard 175A Anderson and Durite SED series connectors. Built with an impact-resistant, flame-retardant housing and precision silver-plated copper contacts, this connector ensures seamless power delivery in demanding environments.

Key Features

• High Conductivity Contacts: Solid silver-plated copper terminals designed for 6mm² wiring offer low electrical resistance and minimal voltage drop under heavy amperage loads.
• Hermaphroditic Design: Identical grey housings interlock smoothly, eliminating the need for separate male and female parts while providing a tight, vibration-resistant fit.
• Voltage-Keyed Mechanical Safety: Industry-standard grey PC housing features mechanical keying to prevent accidental cross-mating with connectors operating at different voltages.
• Rugged Construction: Manufactured from high-impact, flame-retardant polycarbonate (UL94 V-0 rated) for resistance to heat, weathering, and mechanical wear.

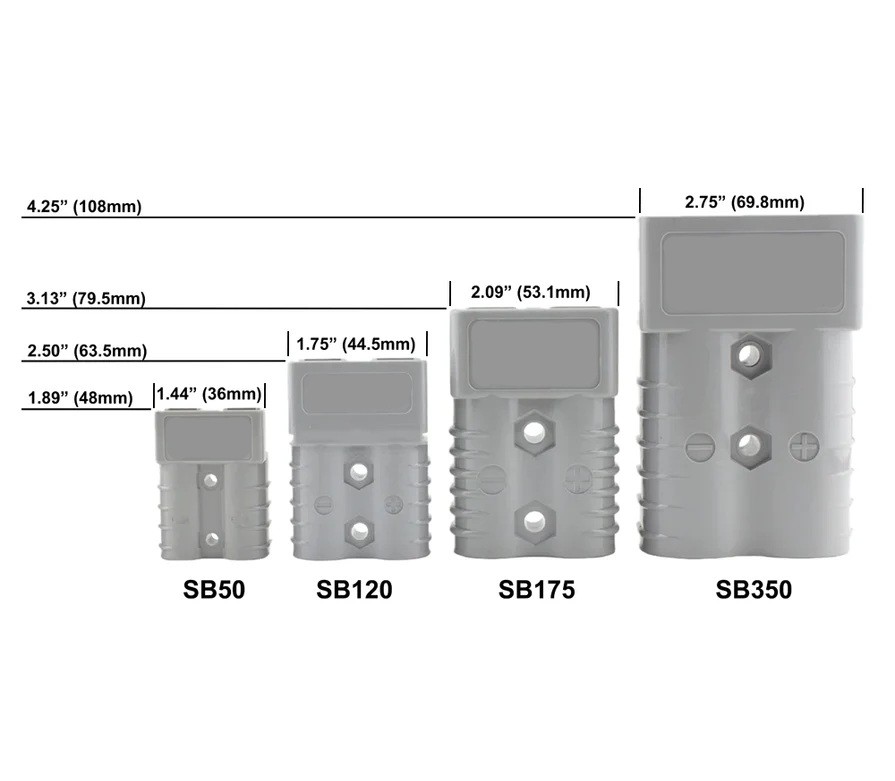

• Universal Compatibility: Fully interchangeable with standard 175 Amp SB50, SED, and Durite-style connectors used across leisure and industrial power setups.

Common Applications

• Commercial & Heavy Vehicles: Tail lifts, tow trucks, recovery vehicles, winches, and snowplows.
• Leisure & Off-Grid Energy: High-capacity campervan battery banks, inverter input connections, solar array setups, and 4×4 off-road recovery gear.
• Industrial & Material Handling: Electric forklifts, pallet jacks, floor scrubbers, heavy DC power distribution, and UPS systems.
• Workshop & Marine: Heavy-duty jump lead kits, high-amp battery chargers, trolling motors, and boat house battery connections.

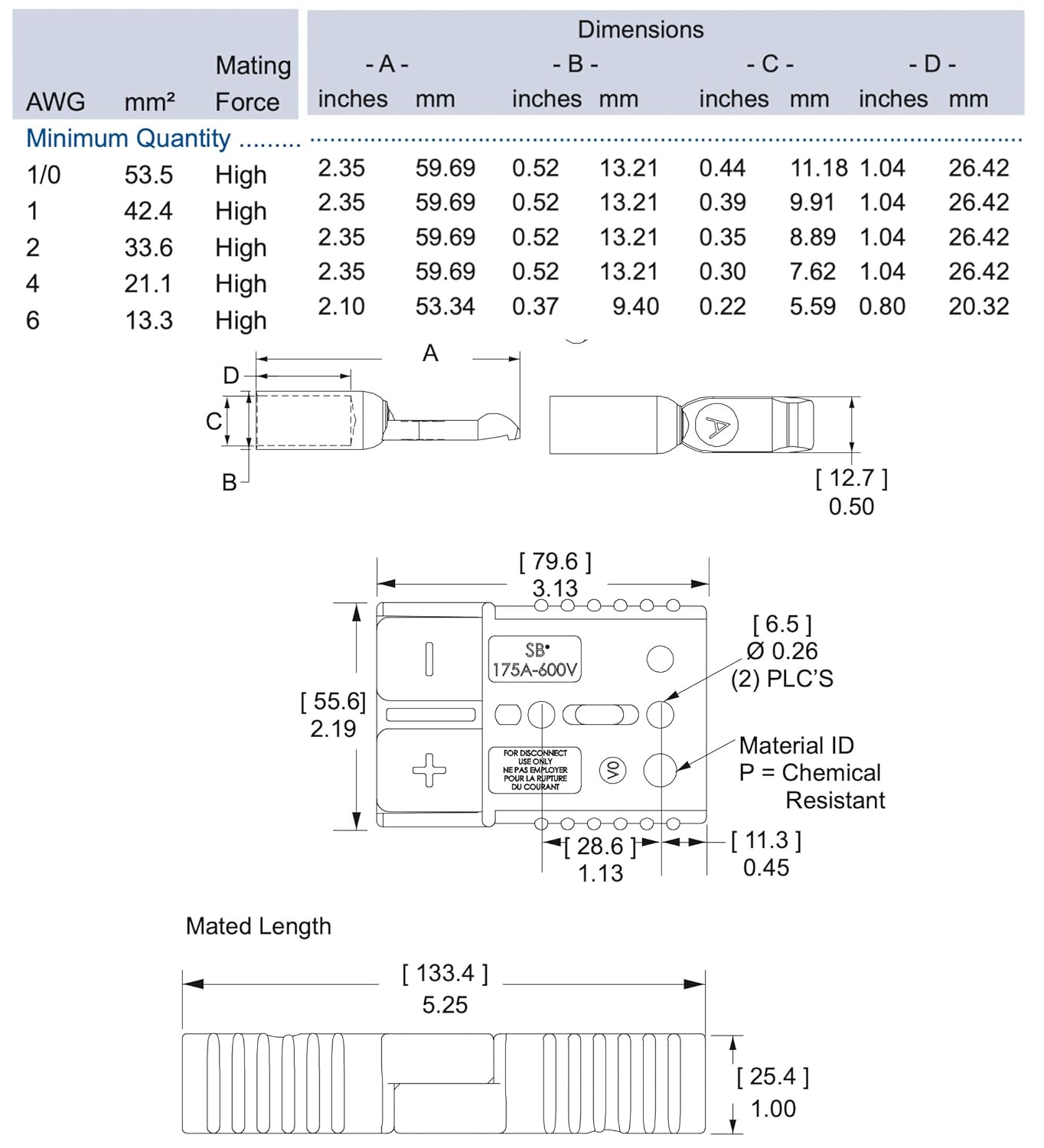

Technical Specifications

>Please Note: Connector housing/accent colours may vary slightly between batches. These connectors are high-quality compatible alternatives to Anderson and Durite SED series connectors and are not manufactured by or affiliated with Anderson. For the perfect fit, we recommend replacing in pairs.
