3-Way Push-In Lighting Connector – Multi-Conductor Loop (0.5mm² – 2.5mm²)
Description
3-Way Push-In Lighting Connector – Multi-Conductor Loop (0.5mm² – 2.5mm²)
Fast, tool-free connections for complex lighting circuits and luminaire wiring.
Simplify your multi-conductor lighting installations with these versatile push-in connectors. Designed as a fast, reliable alternative to traditional junction boxes and screw terminal blocks, they allow you to securely join multiple installation conductors alongside luminaire wires effortlessly—no tools required.
Featuring robust push-in clamps for mains wiring and flexible button-release clamps for lighting fixtures, these connectors deliver a safe, maintenance-free connection that saves valuable time on every lighting fit-out.

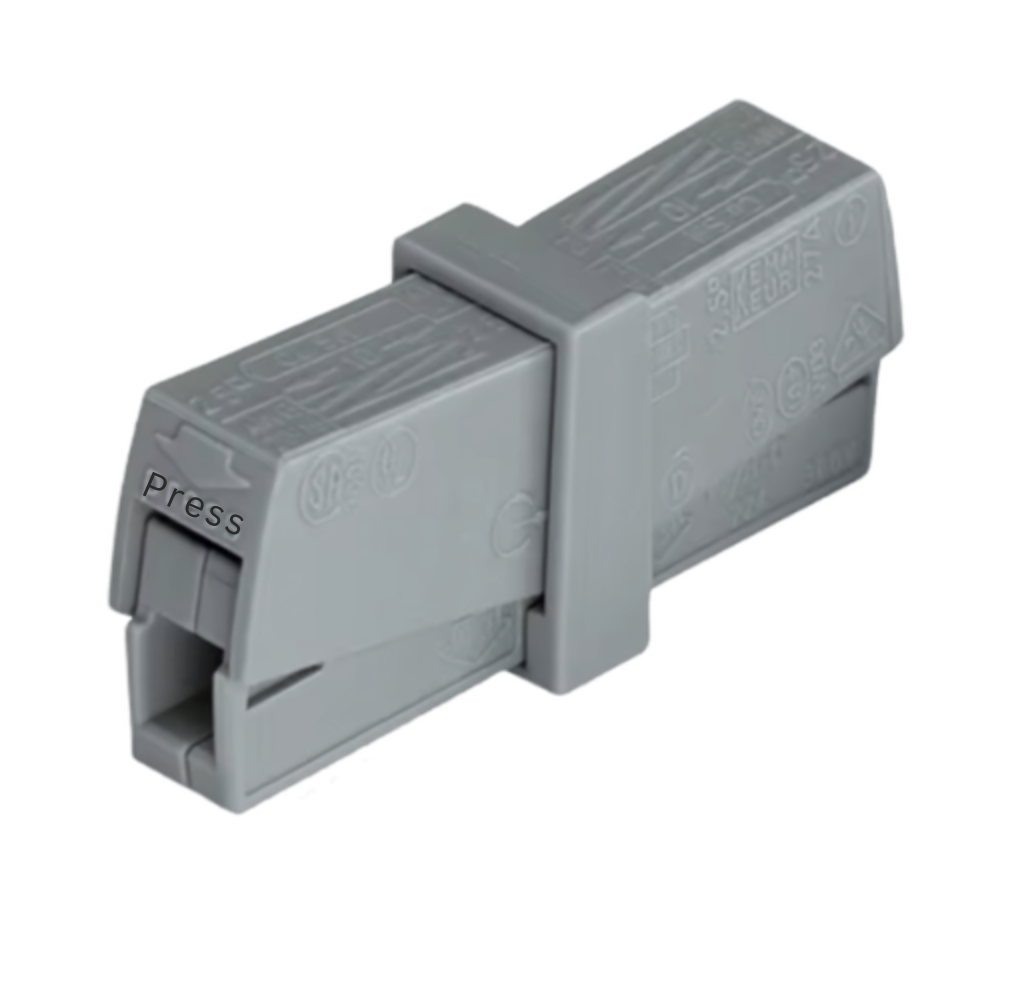

(Similar style and function to Wago 224-201 series)
Key Features
-
Multi-Conductor Capacity: Purpose-built to handle multiple supply and distribution lines in a single compact block.
-

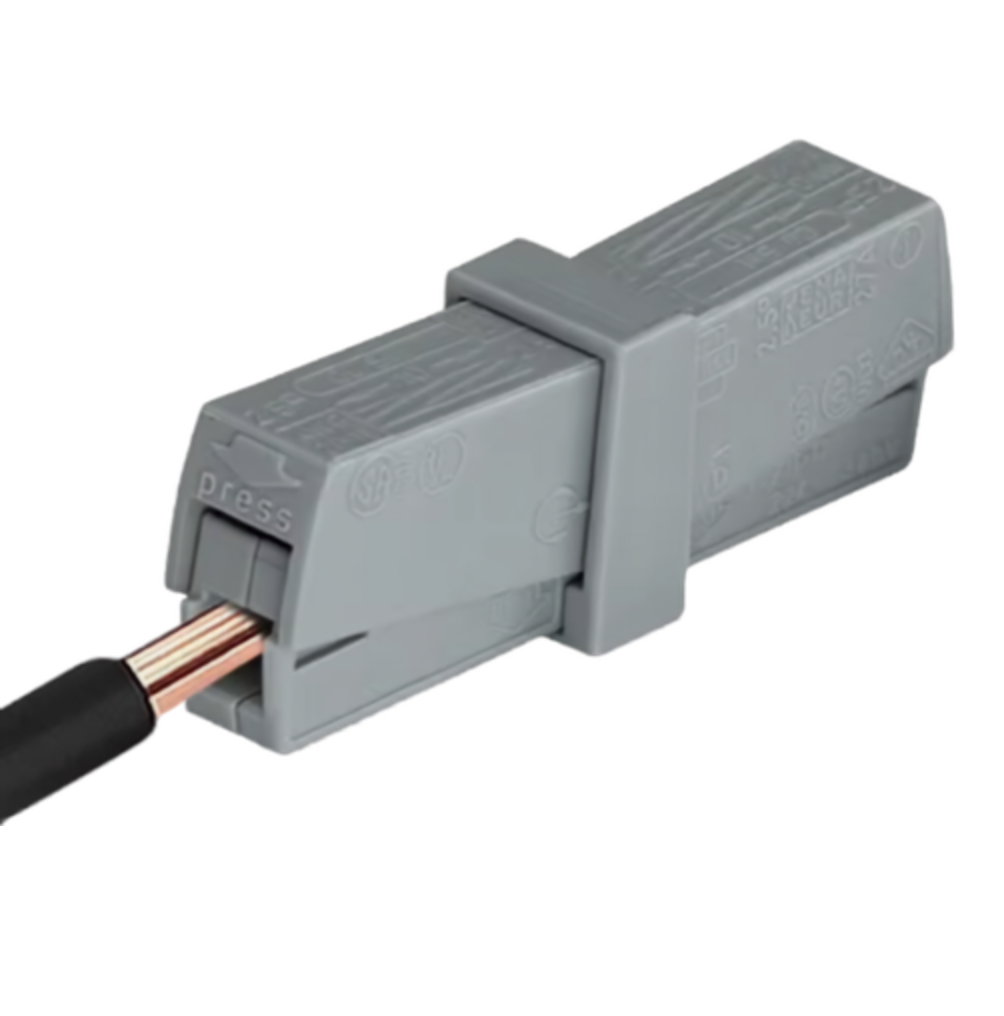

Tool-Free Installation: Push solid supply wires directly in and press the button clamp for flexible lighting leads.
-
Ideal for Complex Luminaire Wiring: Effortlessly bridges main circuit cables to fine-stranded lighting conductors.
-
Ultra-Compact Profile: Slimline design tucks easily into narrow light fittings, rose bases, and tight ceiling voids.
-
Safe & Vibration-Proof: Maintenance-free spring clamp mechanism provides long-term, touch-proof connections.
-
Integrated Test Point: Built-in test slot allows quick voltage testing without disconnecting the circuit.
Technical Specifications
| Feature | Specification |
| Poles / Connection | 3-Conductor Lighting Terminal |
| Installation Side (Solid) | 1.0mm² – 2.5mm² (16 – 14 AWG) |
| Lighting Side (Flexible) | 0.5mm² – 2.5mm² (20 – 14 AWG) |
| Voltage / Current Rating | 400V / 24A max |
| Required Strip Length | 9mm – 11mm |
> Please Note: Connector housing/accent colours may vary slightly between batches. These connectors are high-quality compatible alternatives to the Wago 224-201 series and are not manufactured by or affiliated with Wago.
Complete Your Setup
Need a different size or complete kit? We’ve got you covered:
-
More Lighting Connectors: Need alternative loop-in options? Check our store for 224-101 and 224-112 lighting variants.
-
Portable Spares Kits: Keep a full range of connectors organised and ready on your shelf or in your van.
-
Professional Wire Strippers: Strip installation cables to precise lengths effortlessly with our heavy-duty automatic stripping tools.
Additional information
| Conductor | 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201) |
|---|---|
| Quantity (Pack Size) | 1, 2, 10, 20, 50, 100, 1, 2, 10, 20, 50, 100, 1, 2, 10, 20, 50, 100 |
