8 Way Reusable Wire Cable Block Terminal Electrical Connector like Wago 773-108

 SKU: EB000034  Category:
 EAN:
EAN:

£1.87£30.50

Clear
Loading...

Description

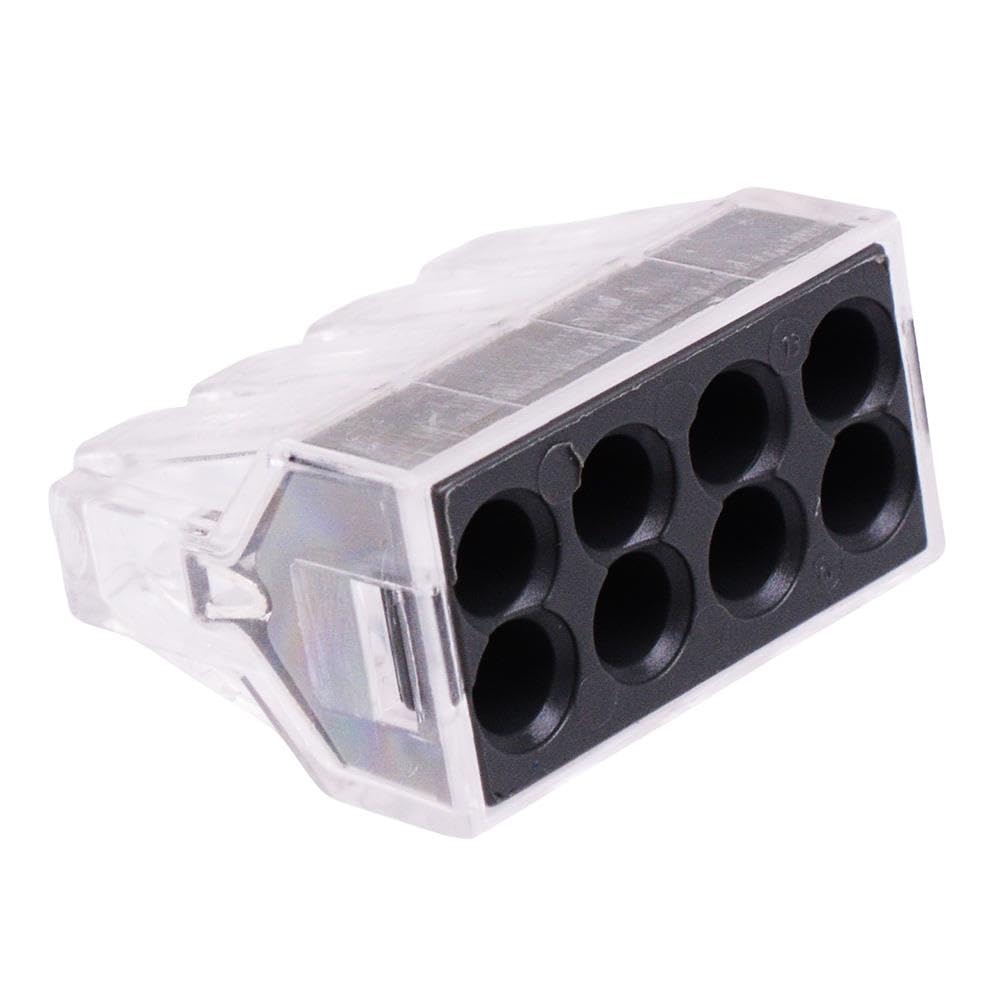

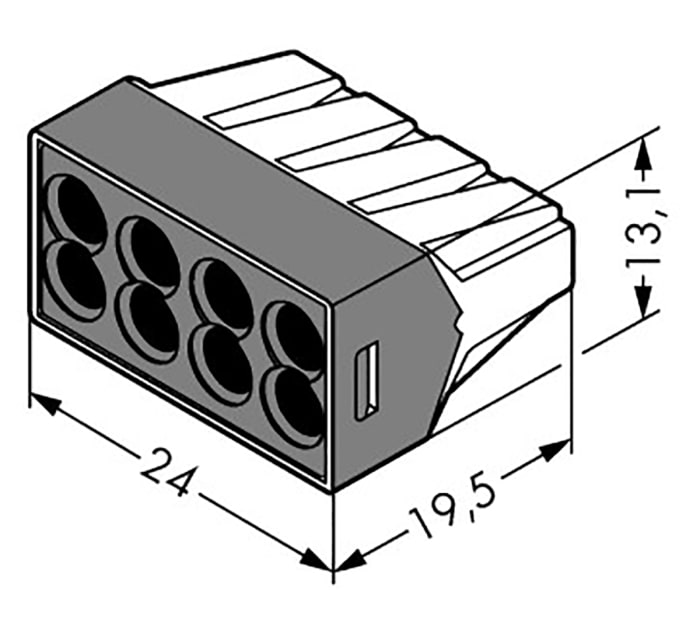

8 Way Reusable Wire Cable Block Terminal Electrical Connector like Wago 773-108

8 WAY PUSH WIRE
ELECTRICAL CONNECTORS

FOR WIRE SIZES 0.75MM² TO 2.5MM² (Solid Cores) AND
WIRES SIZES 1.5MM² TO 2.5MM² (Stranded Cores)



Product details:

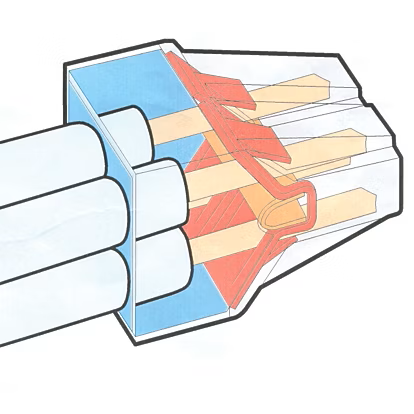

These neat little push connectors are colour coded to identify each configuration.  By simply pushing the wire into the connector, the connection is made.  The transparent design of all of the connectors in the range aids use, and enables easier connection of wires, and a visible indication that the connection is secure

Choose which quantity you require in the above options

Features:
  • Compact splicing push connector
  • Tool free connection
  • space saving design
  • Suitable for solid cores from 0.75mm² – 2.5mm² (18 – 14 AWG)
  • Suitable for stranded cores up to 1.5mm²  – 2.5mm² (16 – 14 AWG)
  • Nominal Voltage rating up to 400V / 24A
  • Suitable for use with conductors stripped 12mm
These are similar to Wago 773-108 connectors, but are in no way related to Wago

(see our other items for 2 Way, 4 Way, and 6 Way versions of this connector !)

note: Colour may not be as shown, shade may differ, or colour may change

Fitting crimps onto your wires? ……Need a crimp tool?:

We also sell crimp tools, please check out our shop where you will find a selection of crimp tools.

We also sell spares kits containing a range of these connectors perfect as a spare set to put on your shelf.

Any questions feel free to send us a message

Additional information

Quantity (Pack Size)

1, 10, 50, 5, 20, 100
