Lighting Connectors Types 224-101 224-112 224-201 as Wago 224 Series

SKU: EB000096 Category:

£0.99 – £24.99

Loading...

Description

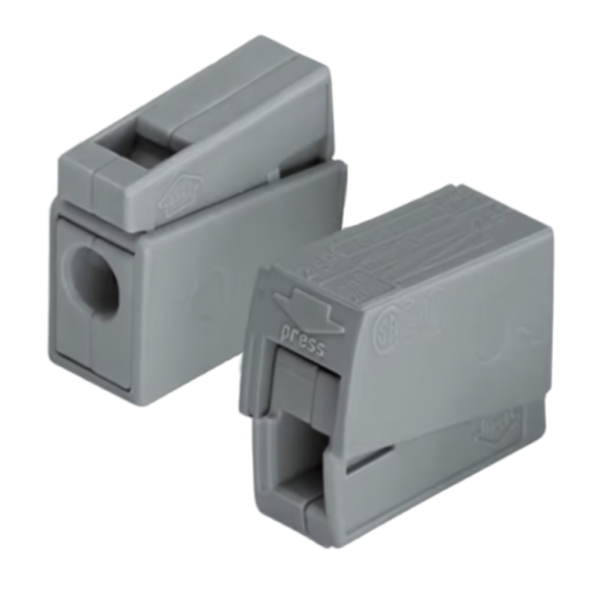

Lighting Connectors Types 224-101 224-112 224-201 as Wago 224 Series

WAGO TYPE CONNECTORS
224-101, 224-112 and 224-201
ELECTRICAL CONNECTORS

FOR WIRE SIZES 0.75MM² TO 2.5MM² (Solid Cores) AND
WIRES SIZES 1.5MM² TO 2.5MM² (Stranded Cores)



Product details:

Wago 224 Type Series connectors – available in pack sizes of 1, 2, 10, 20, 50 and 100pcs

Typical applications include:

  • Extending and looping conductor wires and wiring looms
  • Wall lighting connections
  • Ceiling rose pendant lighting connections
  • Lighting and power connections (for example exhibition stands)

Based on the Wago 224 series these clamping connectors are ideal for lighting applications. There are three versions in the range, two with PushWire and Cage Clamp type connections suitable for 1mm² to 2.5mm²  solid conductors and 0.5mm²  to 2.5mm²  solid, stranded and flexible conductors.

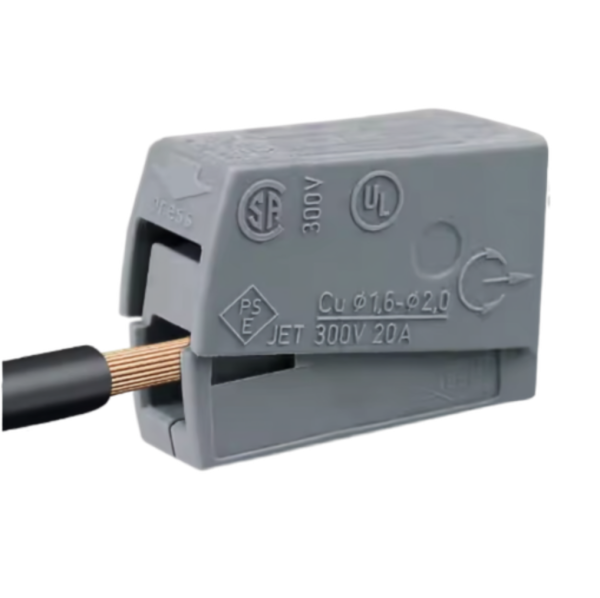

The stripped solid conductor is simply pushed in one side while the stripped flexible conductor is inserted by compressing the terminal housing. The third version has Cage Clamp connection both sides, accepting stripped solid, stranded and flexible conductors from 0.5mm to 2.5mm.

The operation of these connectors is very simple, with no tools required, yet a clean compressed connection is guaranteed. The rating of these connectors is 400V, 24A.



Fitting crimps onto your wires? ……Need a crimp tool?:

We also sell crimp tools, please check out our shop where you will find a selection of crimp tools.

We also sell spares kits containing a range of these connectors perfect as a spare set to put on your shelf.

Any questions feel free to send us a message

Additional information

Conductor

2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201)
Quantity (Pack Size)

1, 2, 10, 20, 50, 100, 1, 2, 10, 20, 50, 100, 1, 2, 10, 20, 50, 100
