2-Way Push-In Lighting Connector – 2-Conductor Installation (0.5mm² – 2.5mm²)
Description

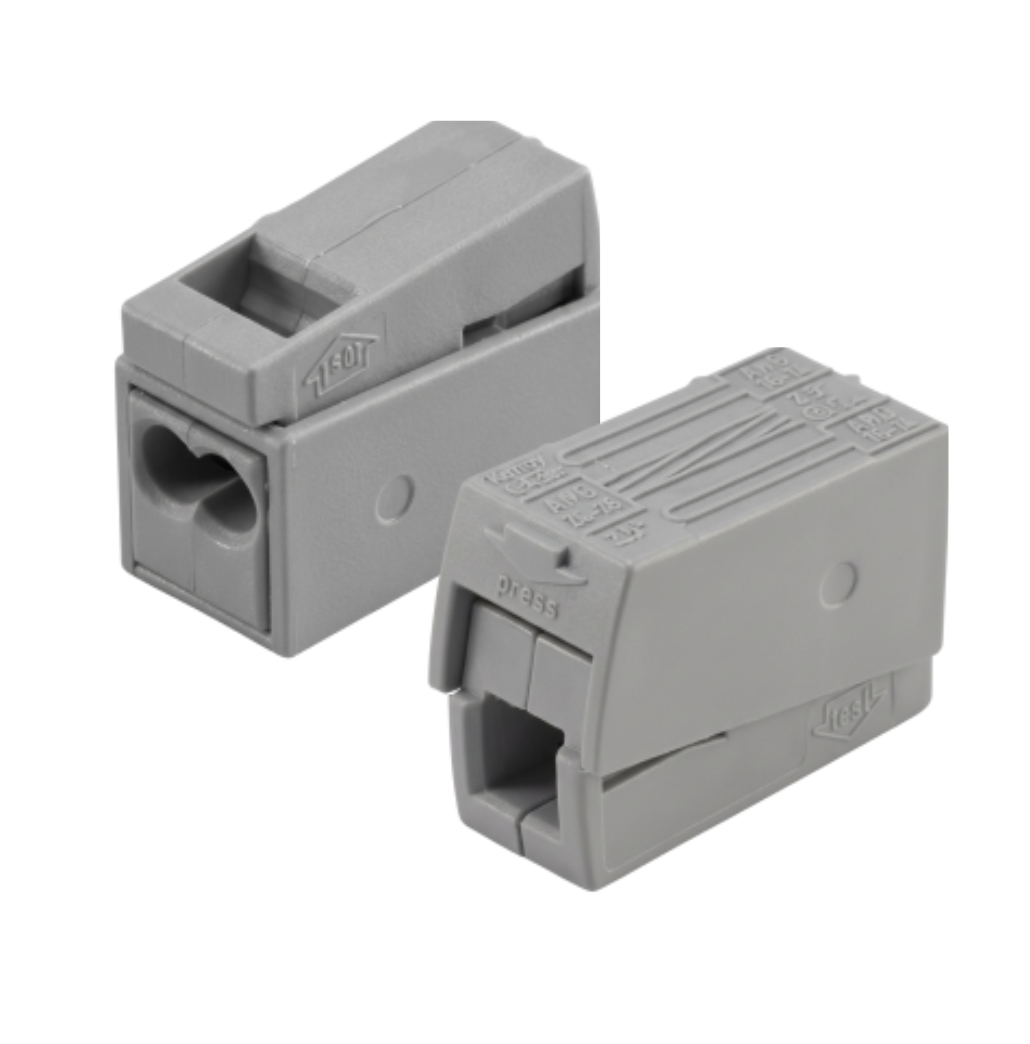

2-Way Push-In Lighting Connector – 2-Conductor Installation (0.5mm² – 2.5mm²)
Fast, tool-free connections for continuous lighting circuits and luminaires.
Simplify your lighting loop-in installations with these compact push-in connectors. Designed as a fast, reliable alternative to traditional junction boxes and screw terminal blocks, they feature two installation-side entries to easily loop power through while tapping off to a flexible luminaire wire—no tools required.
Featuring two push-in clamps for supply/loop-through wiring and a flexible button-release clamp for lighting fixtures, these connectors deliver safe, maintenance-free connections that save valuable installation time on every job.
(Similar style and function to Wago 224-112 series)
Key Features
-
Dual Installation Inputs: Two push-in ports allow easy loop-through wiring for continuous light circuit runs.
-

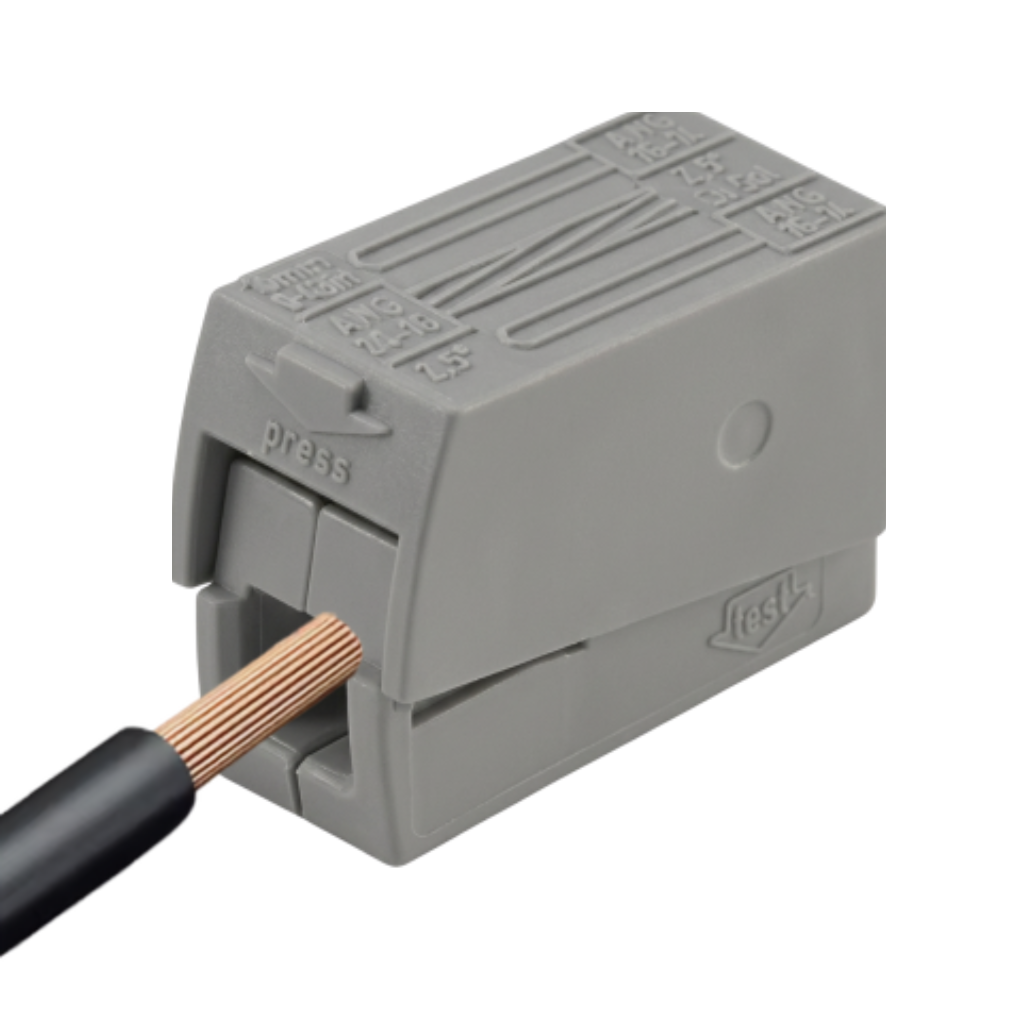

Tool-Free Installation: Push solid supply wires directly in and press the button clamp to release or connect flexible lighting leads.
-
Ideal for Luminaire Loop-In: Purpose-built to connect solid mains wiring directly to fine-stranded luminaire flex.
-
Ultra-Compact Profile: Slimline design easily fits into narrow light fittings, rose bases, and tight ceiling voids..
-
Safe & Vibration-Proof: Maintenance-free spring clamp mechanism provides long-term, touch-proof connections.
-
Integrated Test Point: Built-in test slot allows quick voltage testing without disconnecting the circuit.

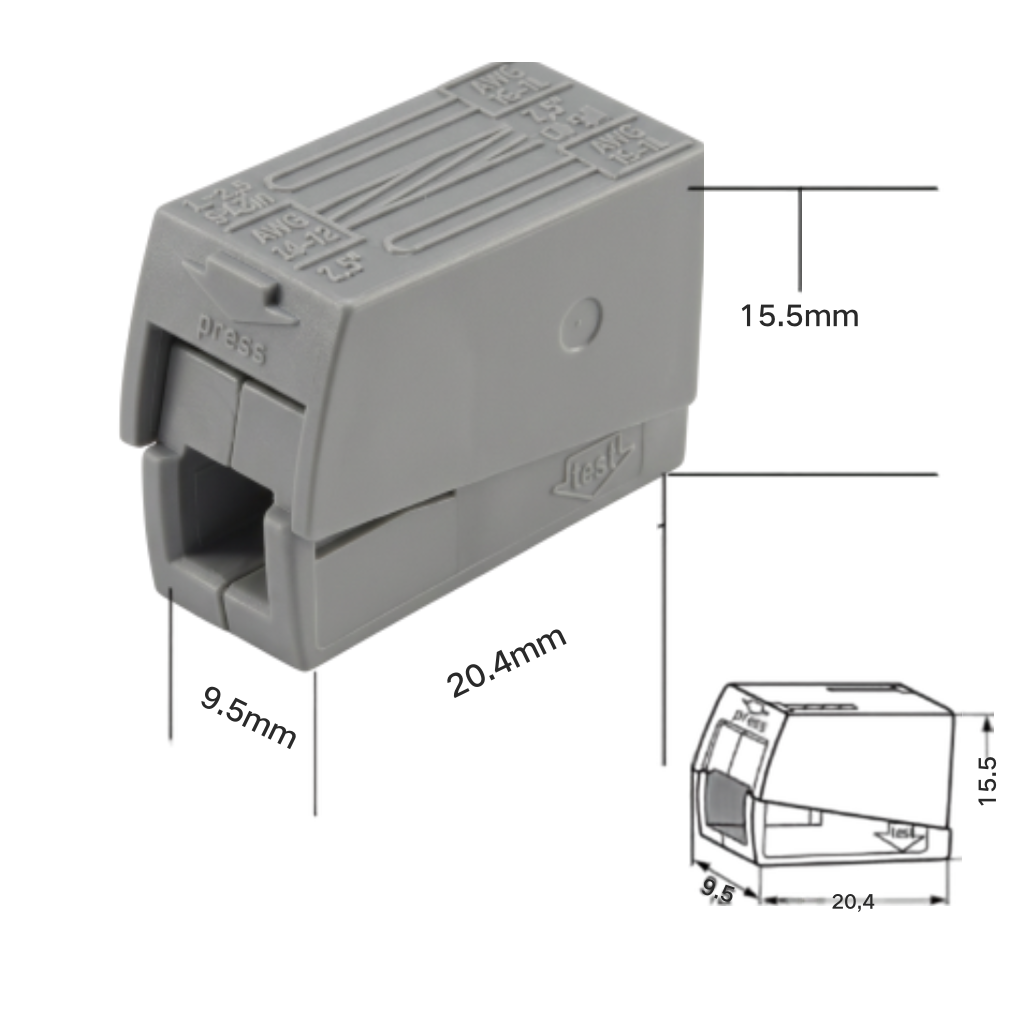

Technical Specifications
| Feature | Specification |
| Poles / Connection | 2-Conductor Installation + 1 Luminaire (2+1) |
| Installation Side (Solid) | 2x 1.0mm² – 2.5mm² (16 – 14 AWG) |
| Lighting Side (Flexible) | 1x 0.5mm² – 2.5mm² (20 – 14 AWG) |
| Voltage / Current Rating | 400V / 24A max |
| Required Strip Length | 9mm – 11mm |
> Please Note: Connector housing/accent colours may vary slightly between batches. These connectors are high-quality compatible alternatives to the Wago 224-112 series and are not manufactured by or affiliated with Wago.
Complete Your Setup
Need a different size or complete kit? We’ve got you covered:
-

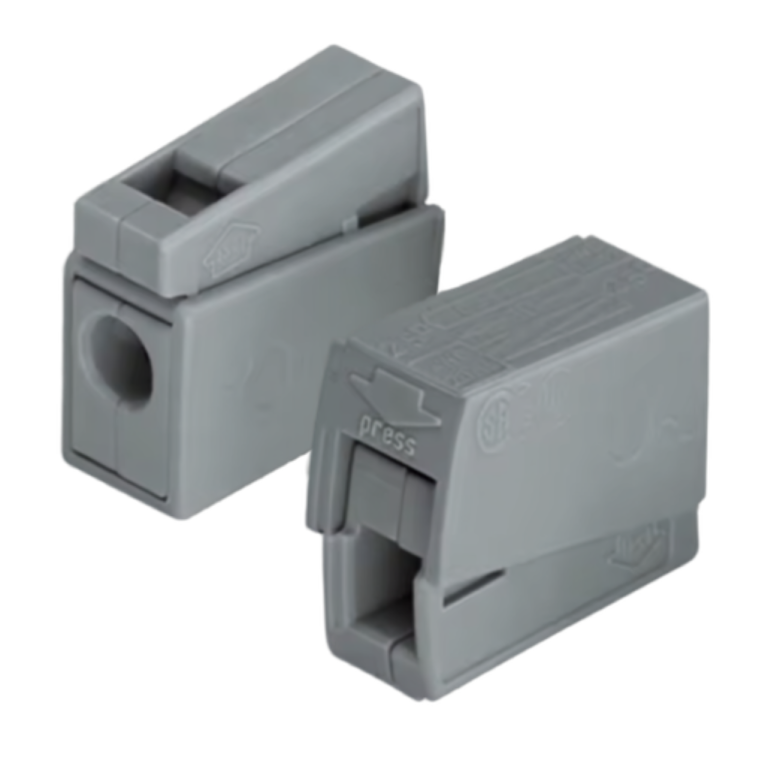

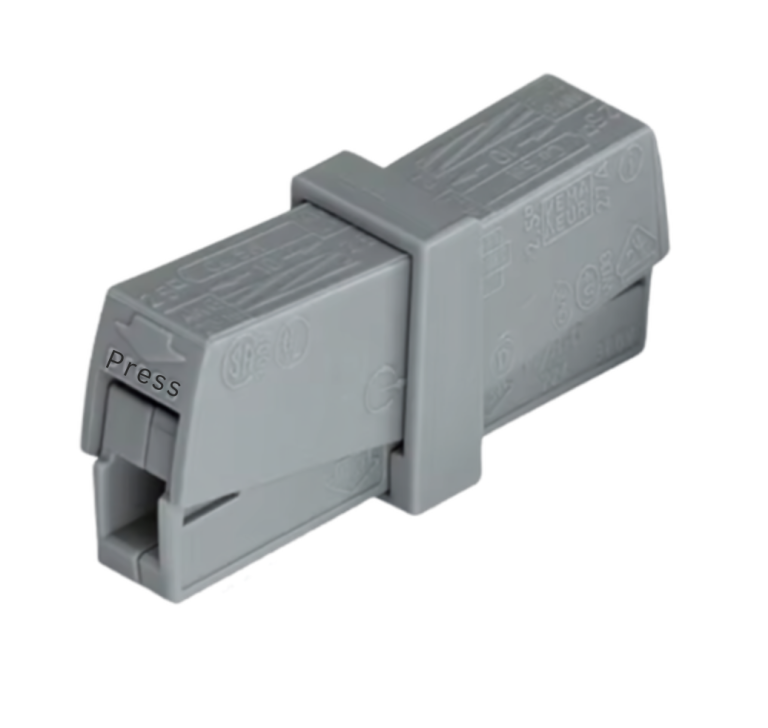

More Lighting Connectors: Need different entry installation options? Check our store for 224-101 and 224-201 style lighting variants.
-
Portable Spares Kits: Keep a full range of connectors organised and ready on your shelf or in your van.
-
Professional Wire Strippers: Strip installation cables to precise lengths effortlessly with our heavy-duty automatic stripping tools.
Additional information
| Conductor | 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 2 Conductor (224-101), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 3 Conductor (224-112), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201), 2 Conductor double sided (224-201) |
|---|---|
| Quantity (Pack Size) | 1, 2, 10, 20, 50, 100, 1, 2, 10, 20, 50, 100, 1, 2, 10, 20, 50, 100 |
